Active Directory Settings¶
dc1.f5lab.local is the Domain Controller for the environment
OU Structure¶
- F5lab.local - Computers - Domain Controllers - Users - Groups - IT - Human Resources - Sales - Sales Engineering - Product Development - Product Management
OU Groups and Accounts¶
The below table displays the groups and accounts contained in each OU.
| OU | Groups | Account Name |
|---|---|---|
| Groups | app1 app2 app3 app4 app5 sysadmin member-services-A member-services-B sysadmins | |
| Human Resources | ||
| IT | CreateUser EditUser | hackeduser |
| Product Development | user2 | |
| Product Management | ||
| Sales | ||
| Sales Engineering | Website Admin | user1 |
| Computers | IIS JUMPBOX | |
| Domain Controllers | DC1 | |
| Users | Sales Engineering Product Development Product Management IT | kerbsso admin |
Account Details¶
The below tables show the nonstandard values for each attribute of a user account
User1¶
Password: user1
| Attribute | Value |
|---|---|
| c | US |
| cn | user1 |
| company | F5 |
| department | Sales Engineering |
| displayName | Wile E Coyote |
| distinguishedName | CN=user1,OU=Sales Engineering,DC=f5lab,DC=local |
| gidNumber | 100 |
| givenName | Wile |
| initials | E |
| loginShell | /bin/shell |
| coyote@acme.com | |
| memberOf | app1, Domain Admins, Domain Users, EditUser, member-services-A, Sales Engineering, sysadmins, Website Admin |
| name | user1 |
| sAMAccountName | user1 |
| sn | Coyote |
| st | VA |
| telephoneNumber | 1234567890 |
| title | Senior Systems Engineer |
| uidNumber | 5001 |
| unixHomeDirectory | /home/user1 |
| userPrincipalName | user1@f5lab.local |
User2¶
Password: user2
| Attribute | Value |
|---|---|
| c | |
| cn | user2 |
| company | F5 |
| department | Product Development |
| displayName | Road Runner |
| distinguishedName | CN=user2,OU=Product Development,DC=f5lab,DC=local |
| gidNumber | 100 |
| givenName | Road |
| initials | |
| l | Seattle |
| loginShell | /bin/shell |
| name | user1 |
| runner@acme.com | |
| mobile | 1234567890 |
| memberOf | CreateUser, Domain Admins, Domain Users, Product Management |
| PostalCode | 98101 |
| sAMAccountName | user2 |
| sn | Runner |
| st | WA |
| streetAddress | 456 Fake Street |
| telephoneNumber | 12345678 |
| title | Product Development Architect |
| uidNumber | 5002 |
| unixHomeDirectory | /home/user2 |
| userPrincipalName | user2@f5lab.local |
kerbSSO¶
Password: kerbsso
| Attribute | Value |
|---|---|
| cn | kerbsso |
| distinguishedName | CN=kerbsso,CN=Users,DC=f5lab,DC=local |
| givenName | kerb. |
| memberOf | Domain Users |
| name | kerbsso |
| sAMAccountName | kerbsso |
| servicePrincipalName | HOST/kerbsso.f5lab.local |
| sn | sso |
| userPrincipalName | HOST/kerbsso.f5lab.local@f5lab.local |

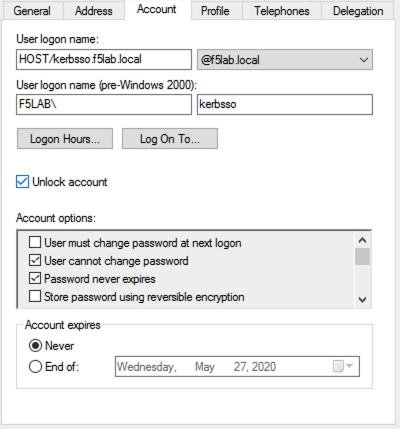

Kerbsso Account Settings¶

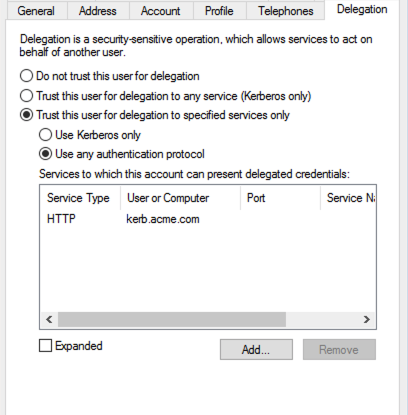

Kerbsso Delegation Setting¶
